KRT Manual

Accessed through the Downloads page, the KRT Manual is your ultimate guide to building and using your KRT.

What does the manual include?

• Notices
  Important disclaimers, disclosures, and license information
• Background
  Contextual information about the project
• Understanding the KRT
  Everything you need to know about KRT variations, features, and accessories
• Files & Documentation
  Breakdown of the files available for download
  Metric system users? There’s a section in here just for you!
• Planning Your Build
  All the things you should think about while planning your KRT build
• Build Guidance & Tips
  Not step-by-step instructions, but an important companion to the build drawings
  New to 3D-printing? There’s a section in here just for you!
• Teaching with the KRT
  Helpful advice and lesson topics

Downloads

What is available for download?

• KRT Manual.pdf
  As mentioned above
• KRT Placard.pdf
  A name plate and notice to be mounted to your KRT

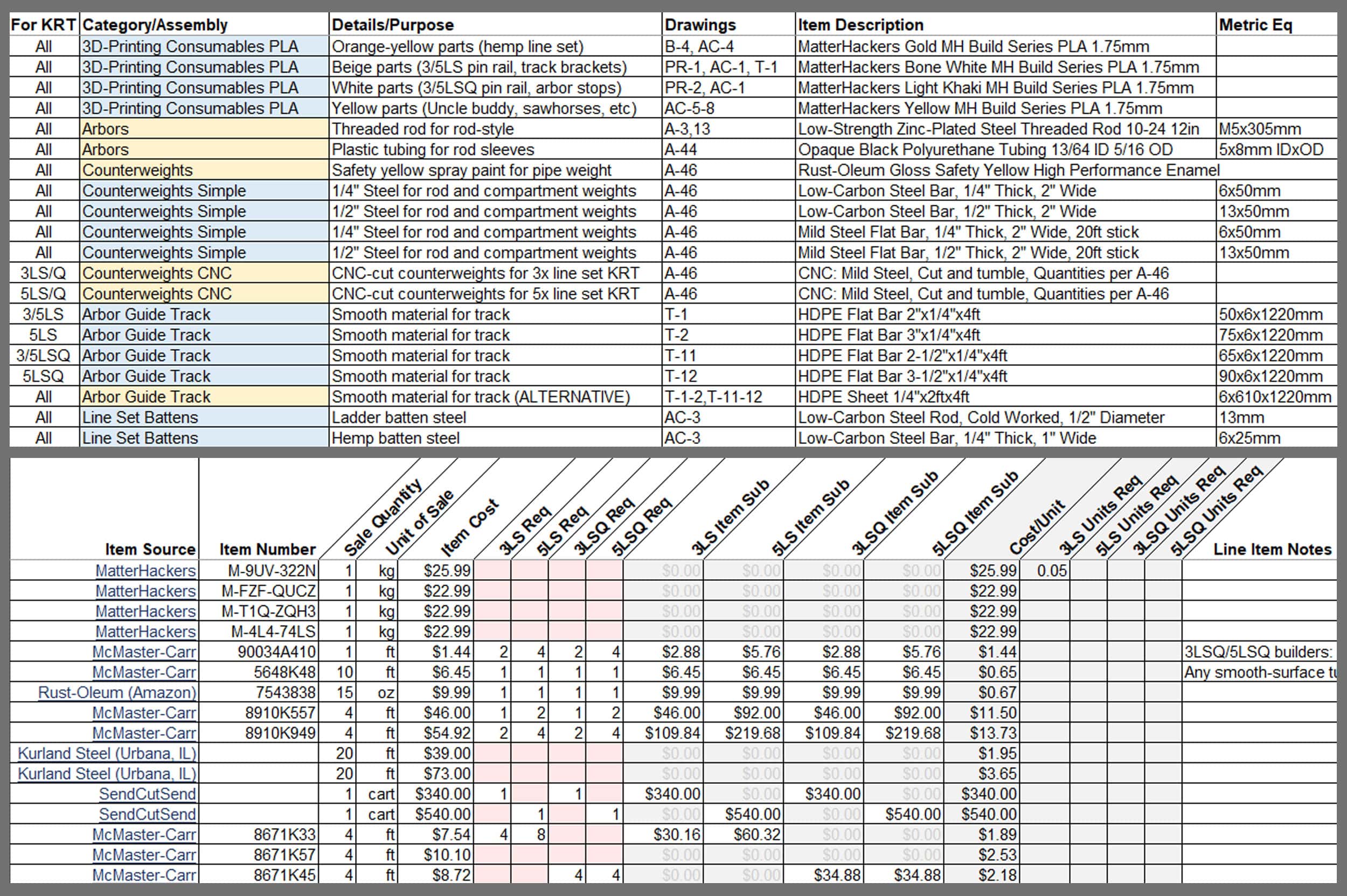

• KRT Costing Sheet.xlsx
  Pre-filled spreadsheet for shopping and budgeting
  This is a worksheet to help you plan your build

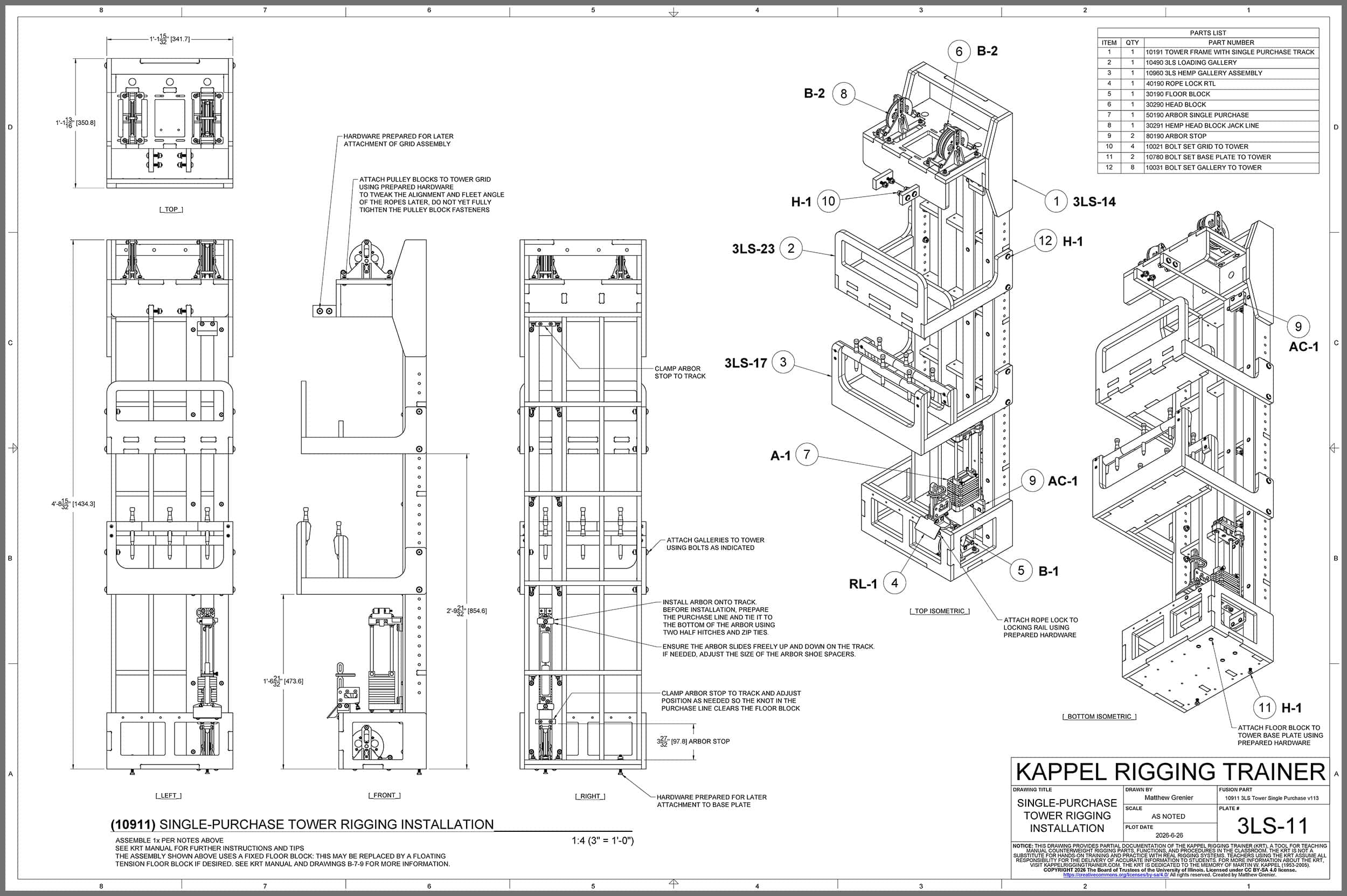

• KRT Drawings.zip
  • All drawings in PDF and DXF format
  • KRT Plate Index.pdf – List of all drawings

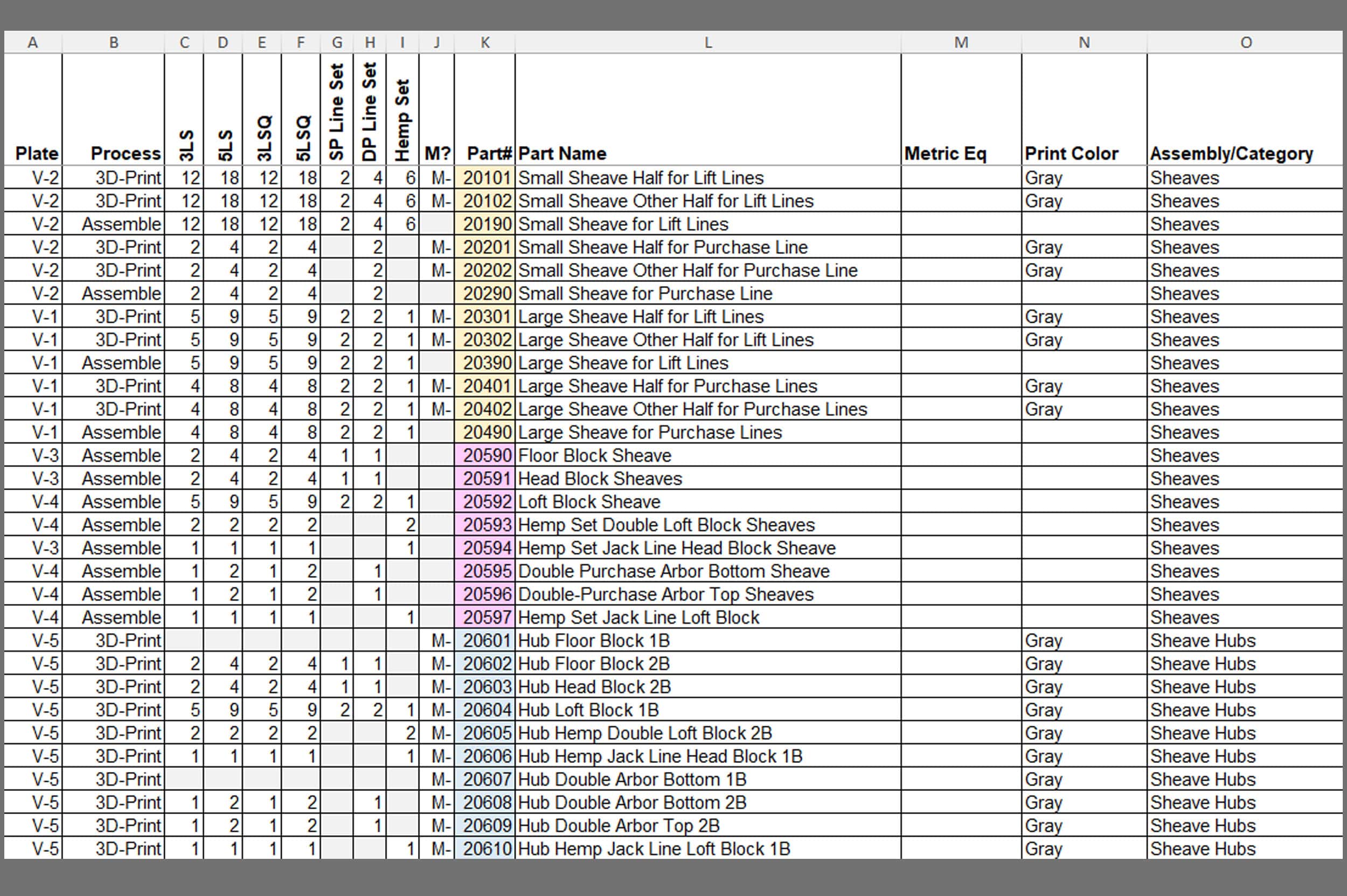

• KRT Parts List.xlsx
  Spreadsheet of all KRT parts including part number index

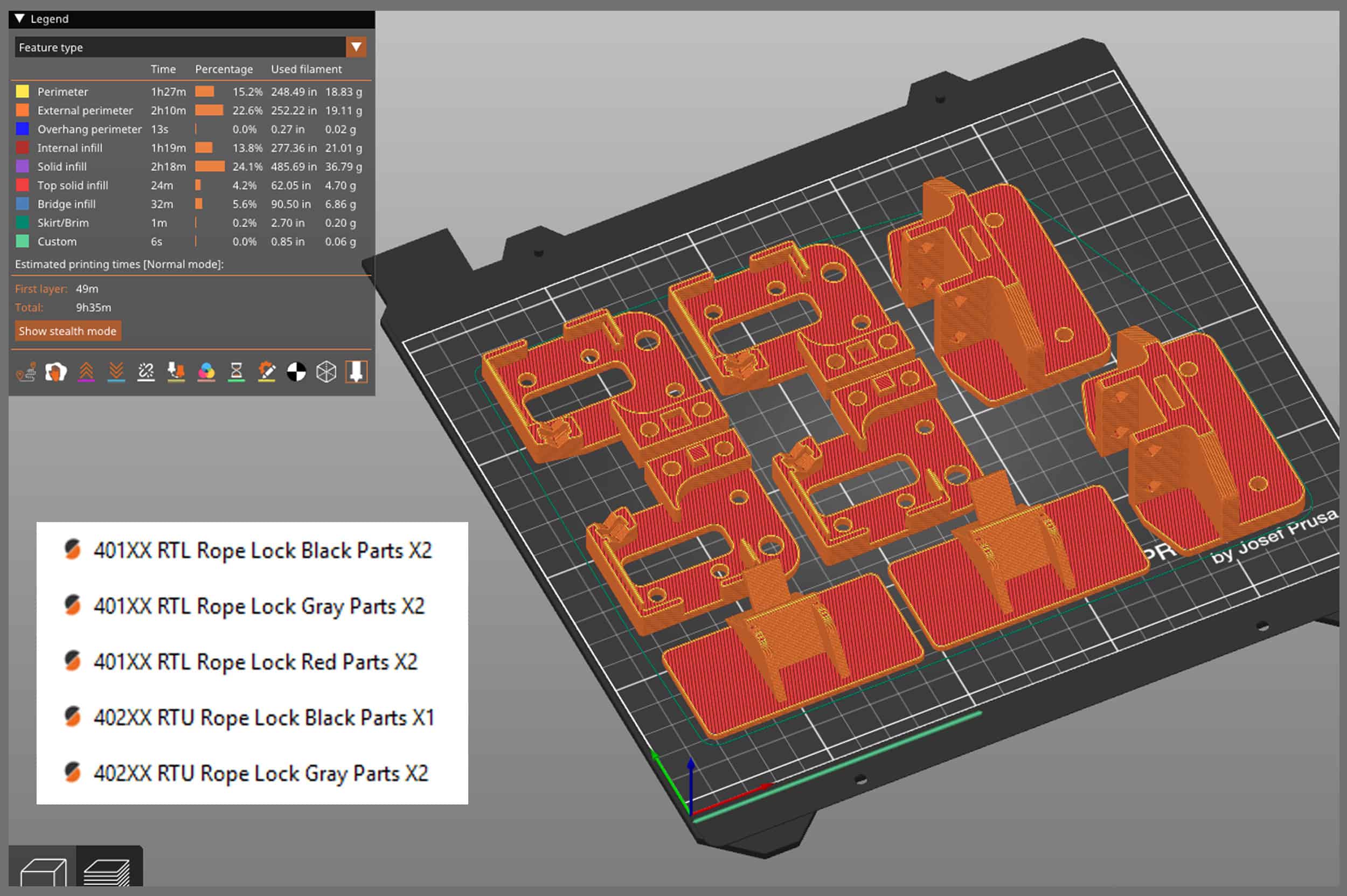

• 3D-Print Files
  Each 3D-print package includes STL, STEP, and 3MF files
  • KRT-3DP Imperial Parts.zip
  • KRT-3DP Metric Parts.zip

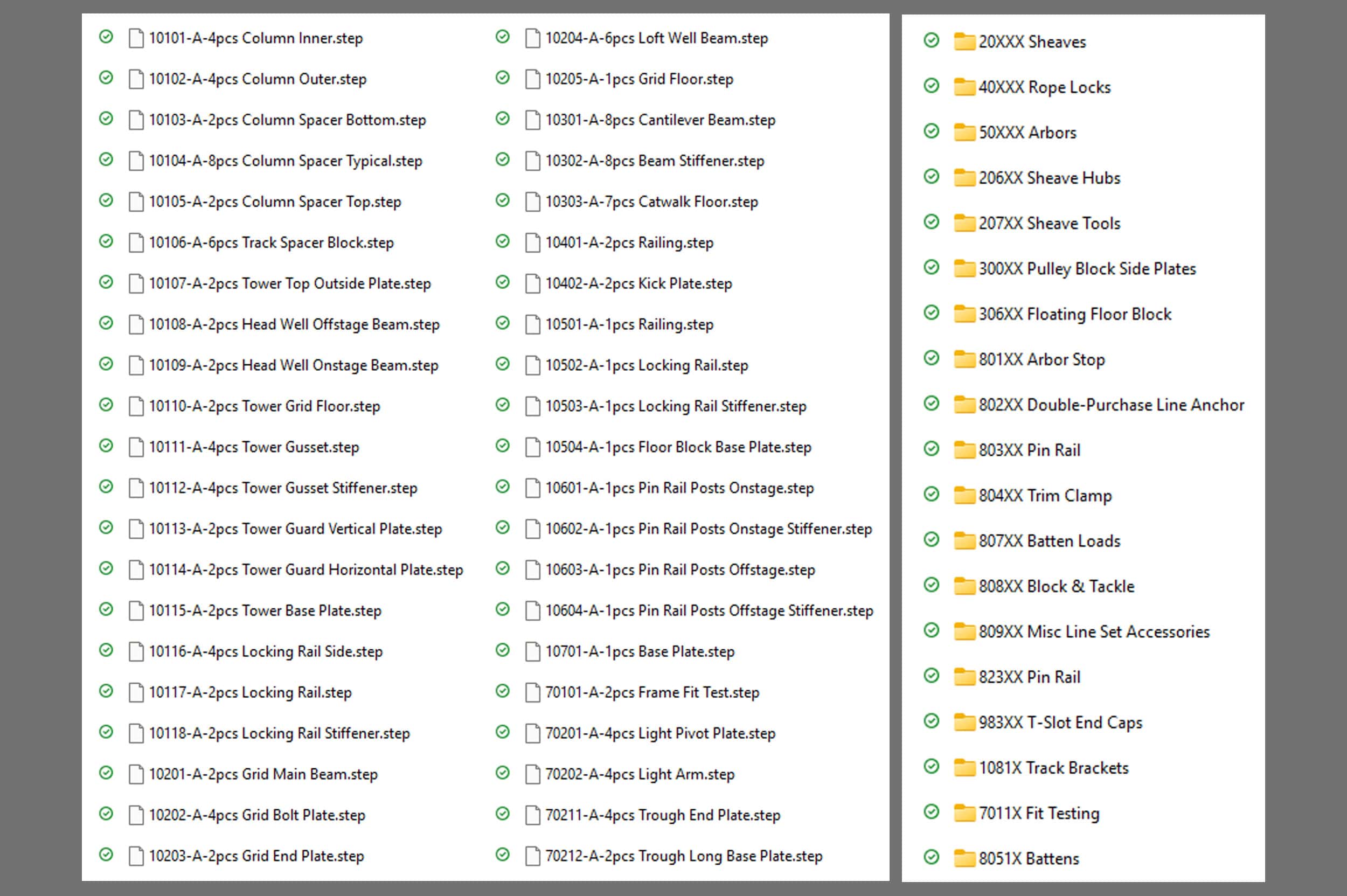

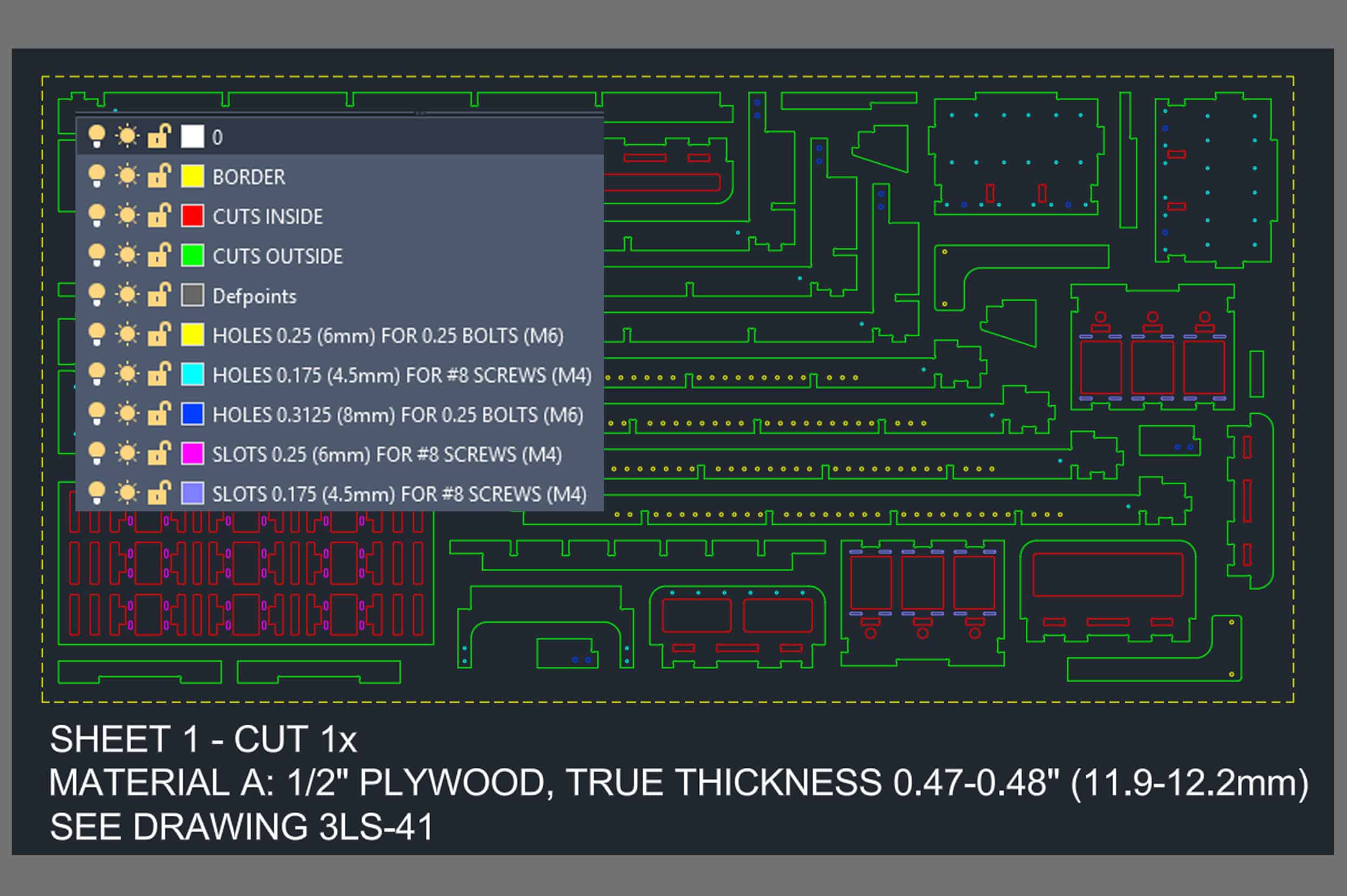

• CNC Files
  Each CNC package includes STEP, DXF, and/or DWG files

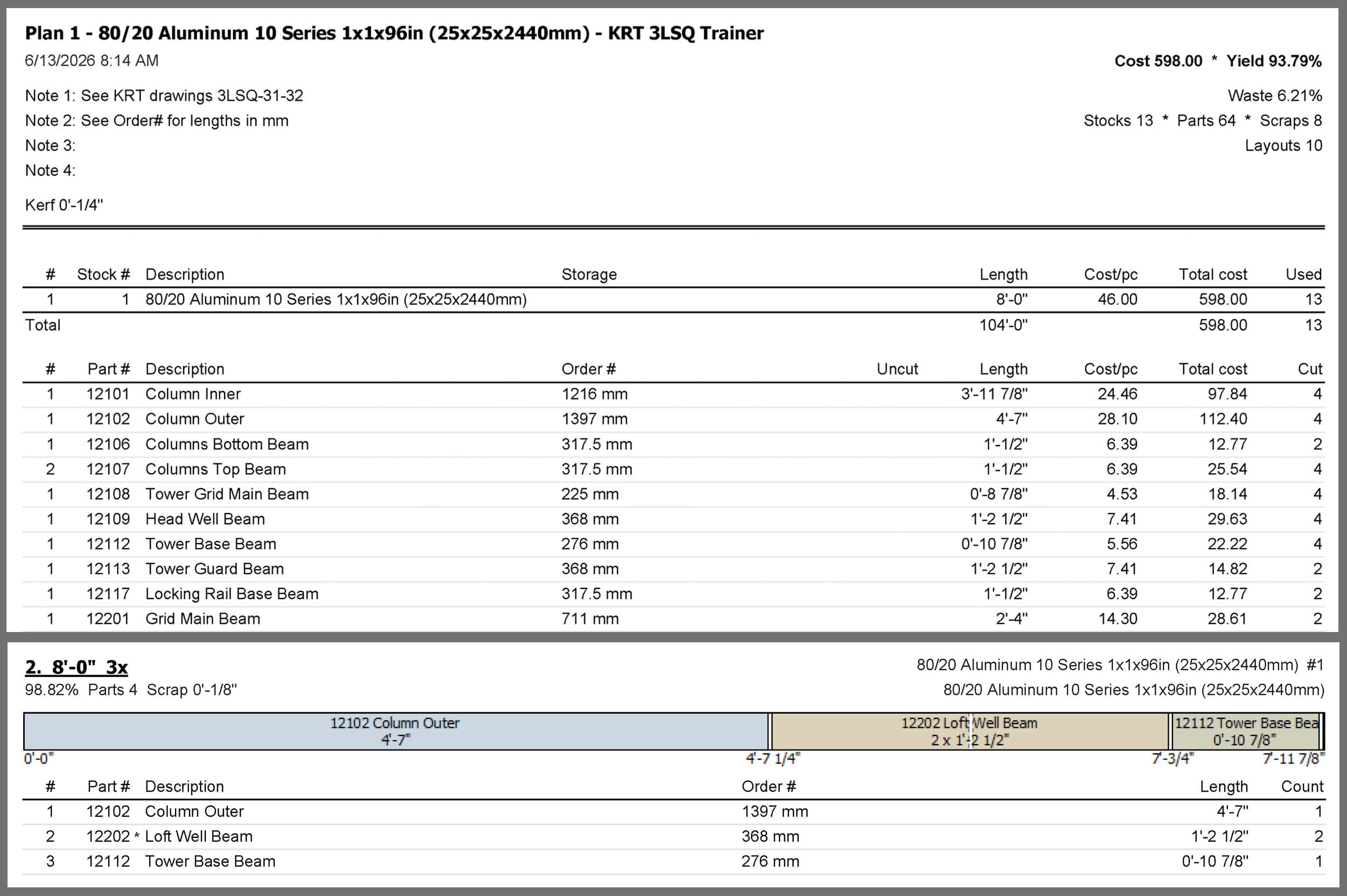

  Some packages include other cut lists and quotes from SendCutSend
  • KRT-CNC 10XXX-A 3LS.zip
  • KRT-CNC 11XXX-A 5LS.zip
  • KRT-CNC 12XXX-AA 3LSQ.zip
  • KRT-CNC 13XXX-AA 5LSQ.zip
  • KRT-CNC 308XX Pulley Block Sheet Metal Side Plates.zip
  • KRT-CNC 509XX Counterweights.zip
  • KRT-CNC 807XX Line Set Batten Loads.zip
  • KRT-CNC M-807XX Metric Line Set Batten Loads.zip

Previews

Preview the downloadable documents and files.
