Kappel Rigging Trainer

An open-source counterweight rigging system for the classroom

New Prototypes Underway

Written by

in

In preparation for USITT26, the new prototypes of the KRT are in-progress. These prototypes are sponsored in-part by Productions Unlimited, Inc. All of the laser-cut steel and aluminum parts were donated. Thank you Productions Unlimited! Also, thank you to the Krannert Center Scene Shop for supporting the build. Last but not least, thank you to Eben Alguire for helping with the 3D-printing and students Alex Cheney and Brian Zuckerman for helping assemble the new trainers. See below for some highlights from the build.

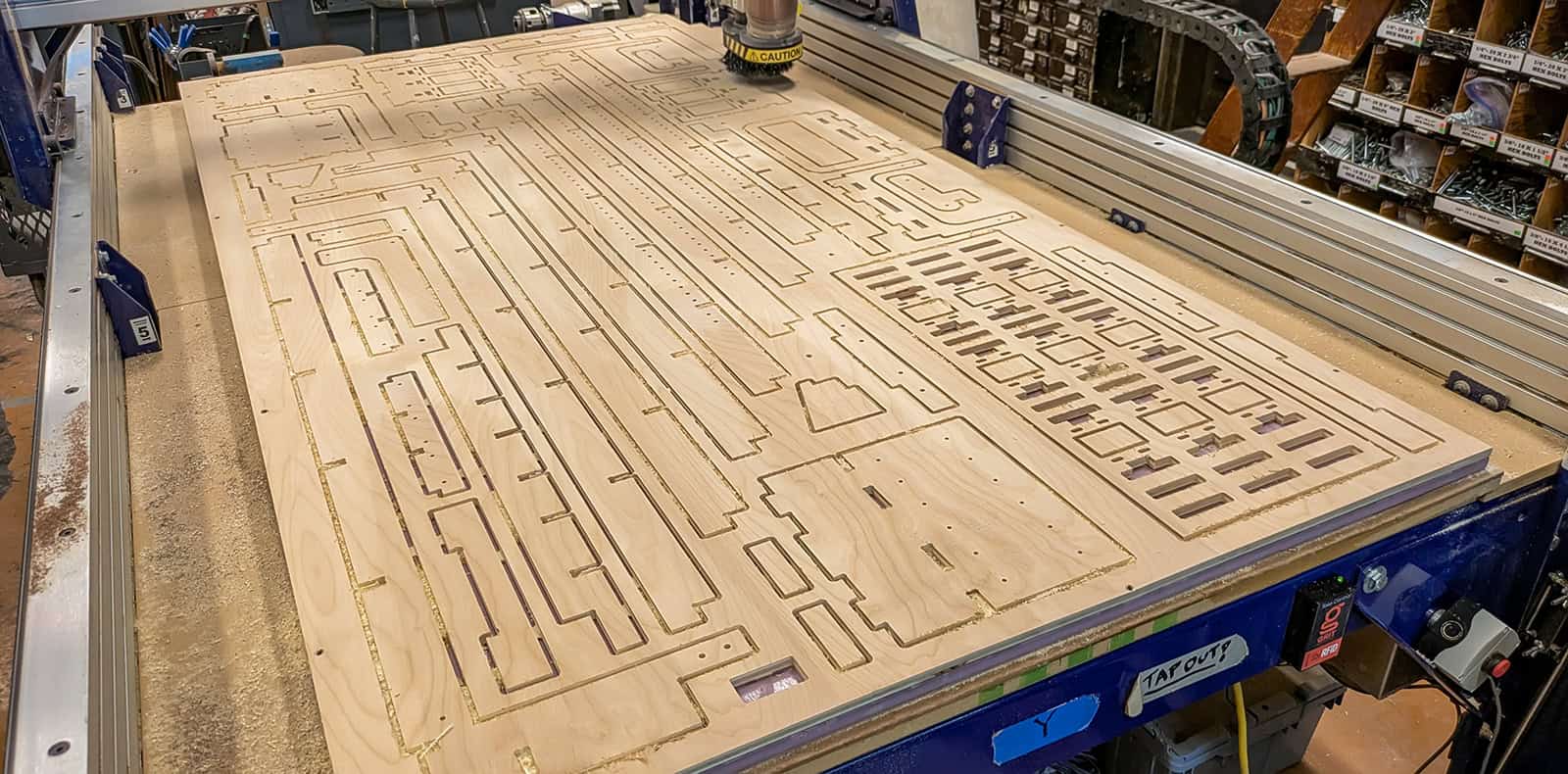

Cutting on sacrificial foam with ShopBot CNC

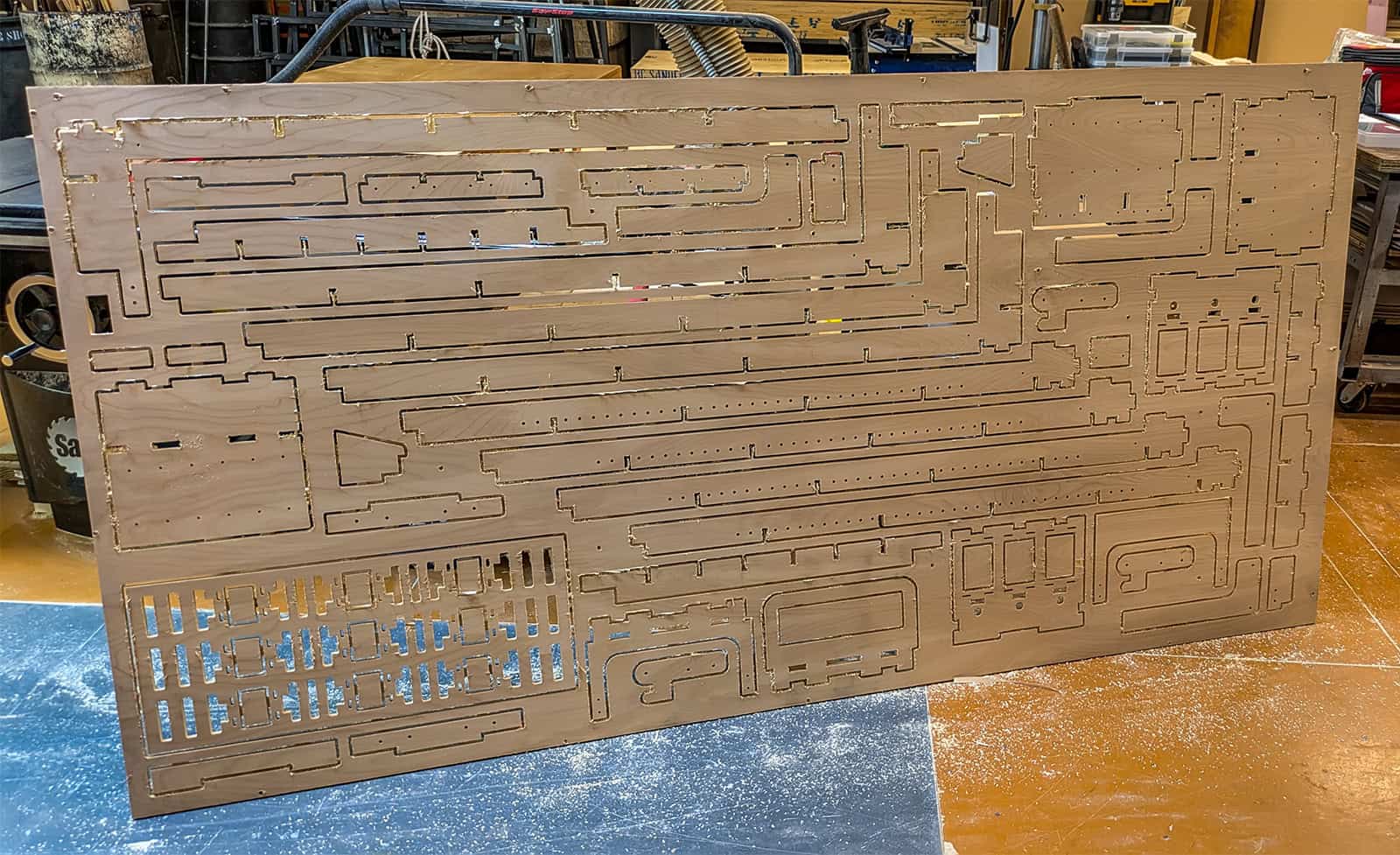

Finished sheet of CNC parts

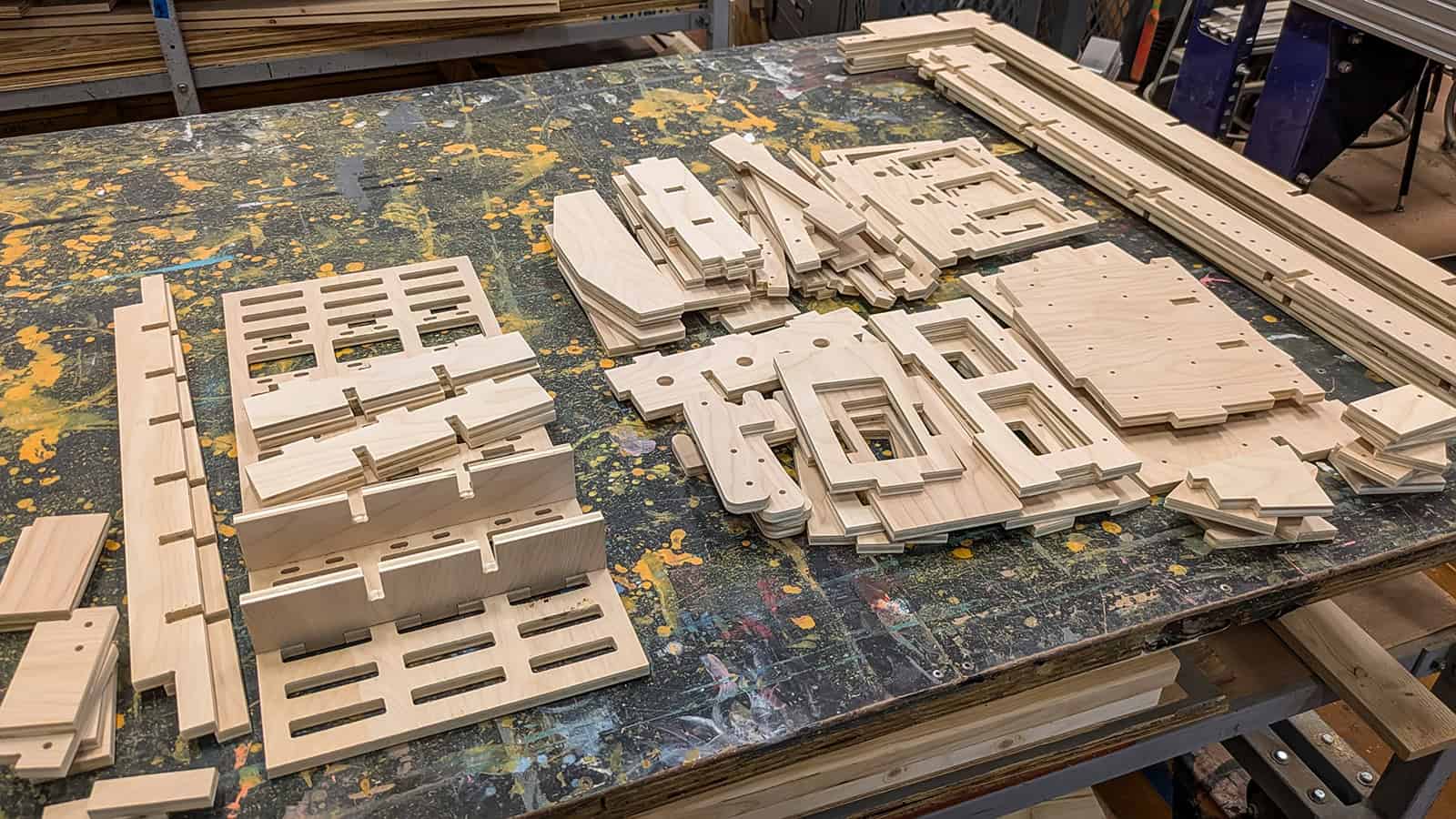

CNC Parts after clean-up

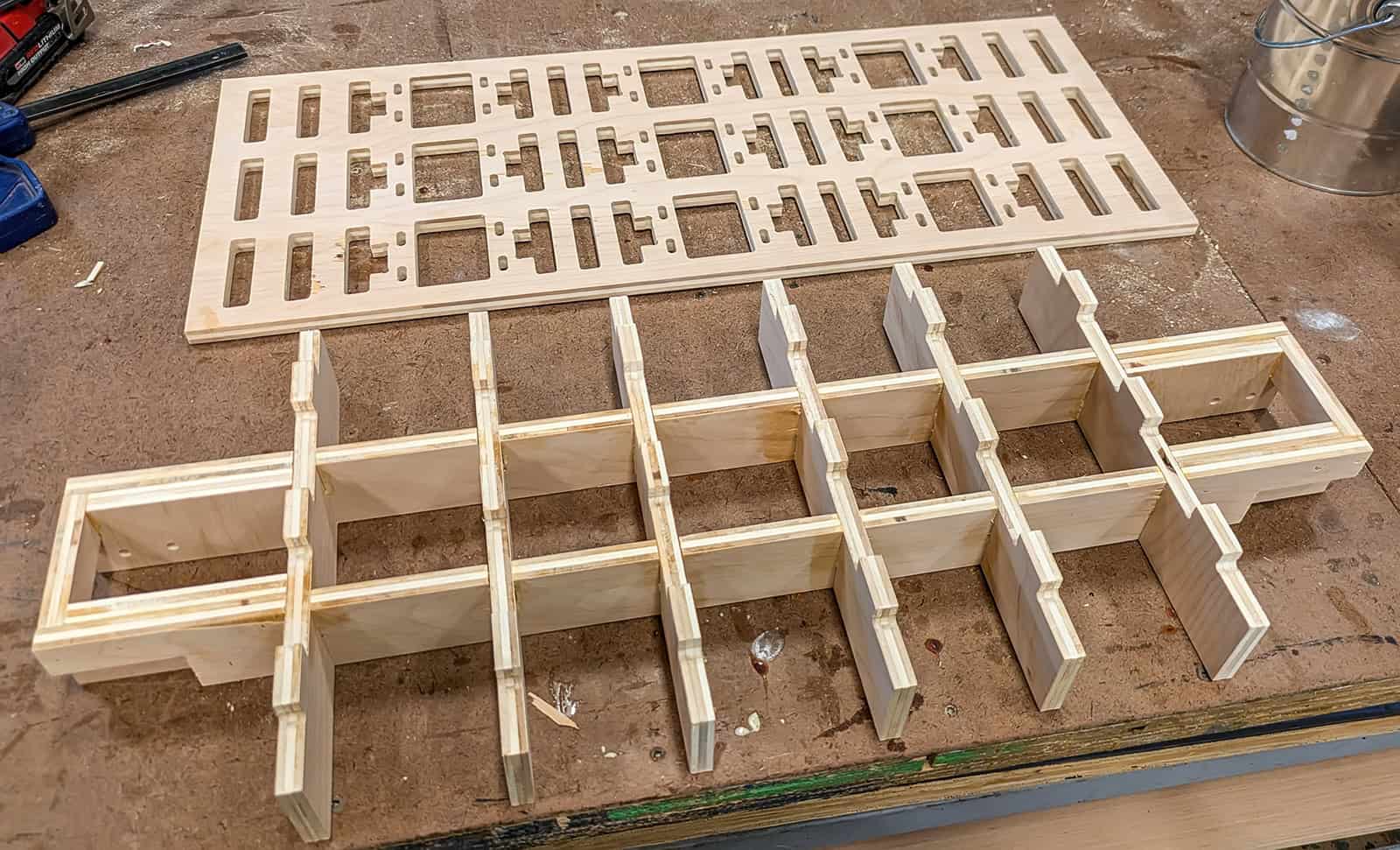

Grid assembly
Prototype drawings

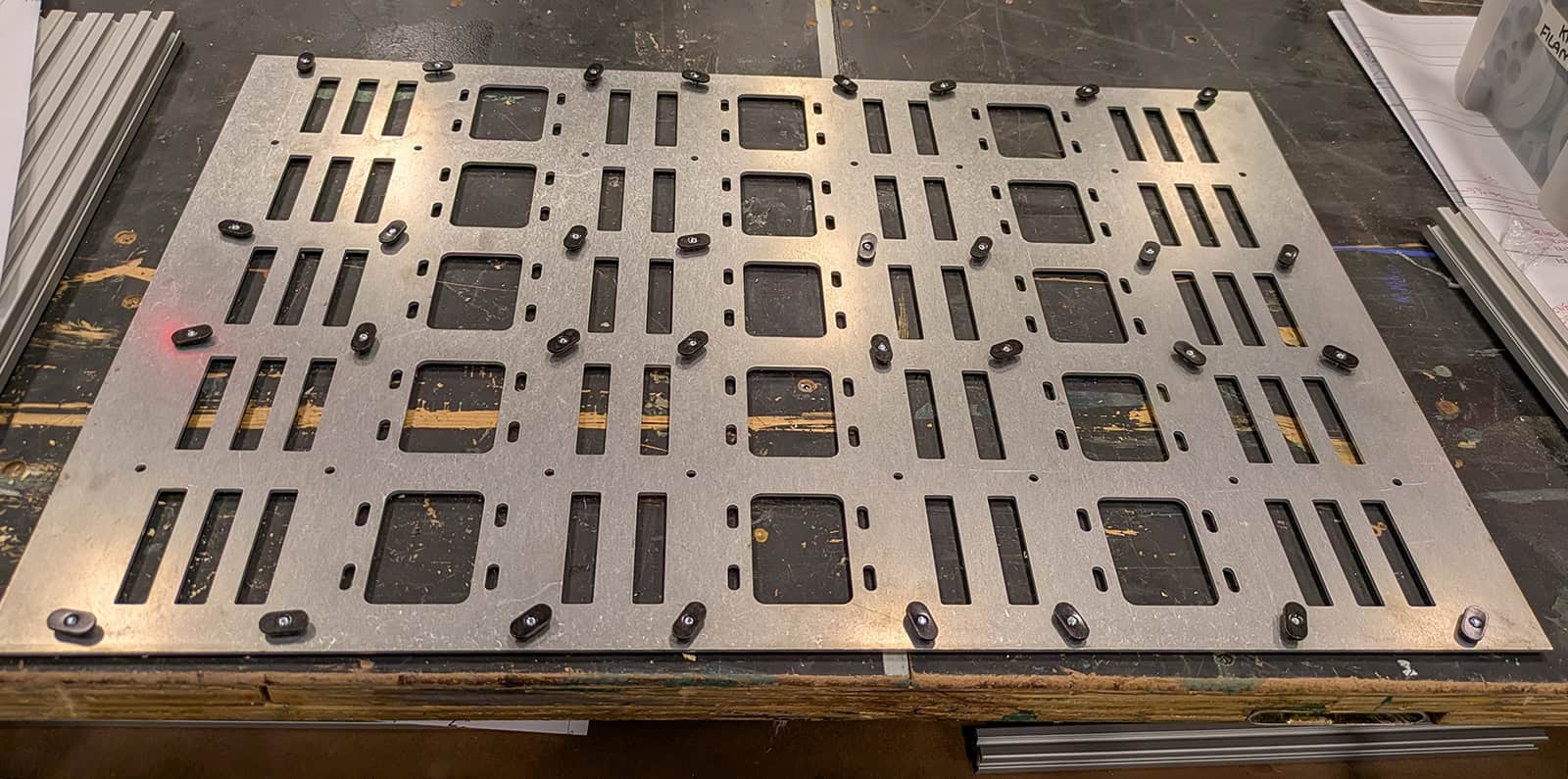

5LSQ Grid plate

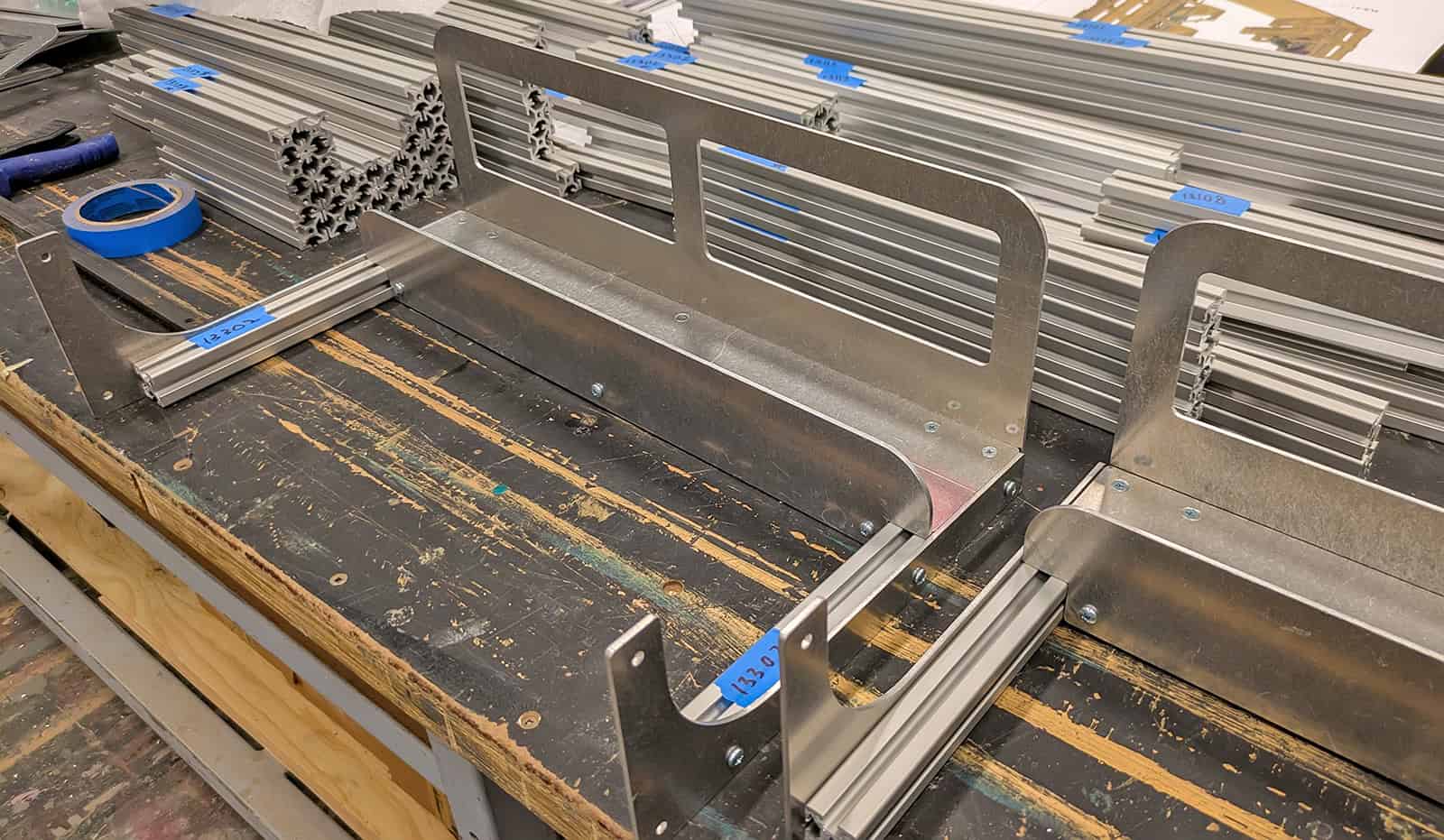

5LSQ Loading gallery

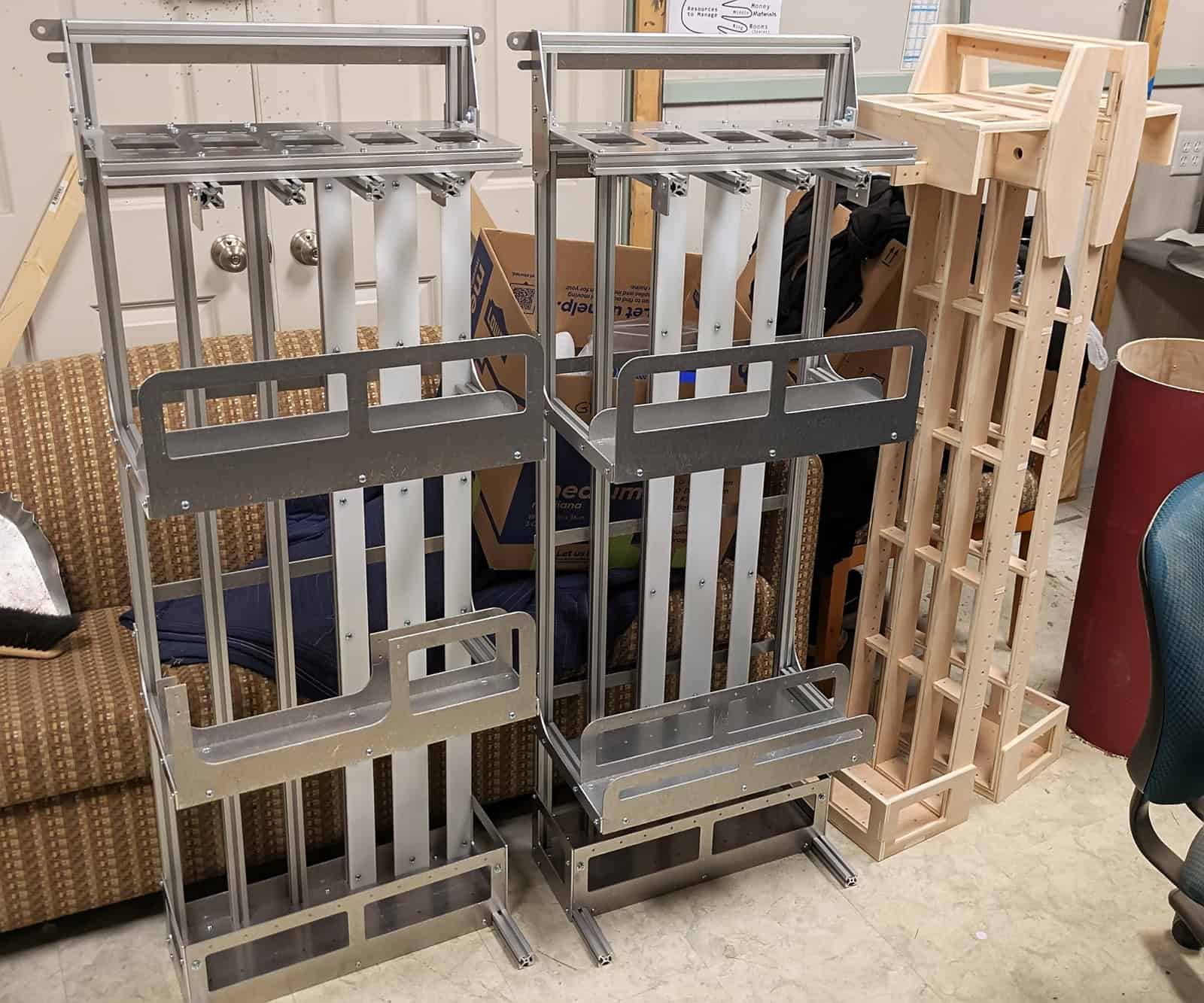

5LSQ Towers

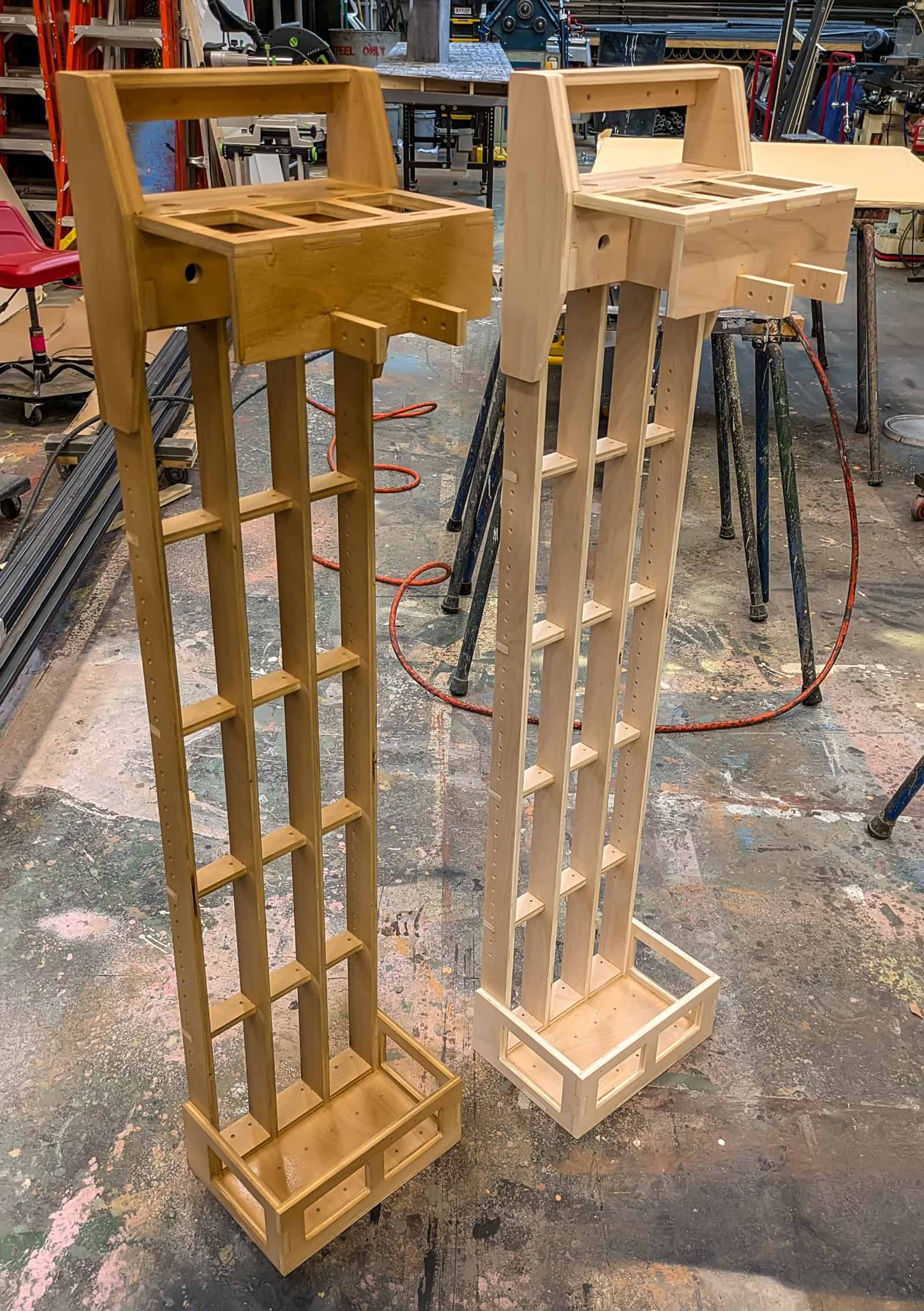

3LS Towers before and after painting

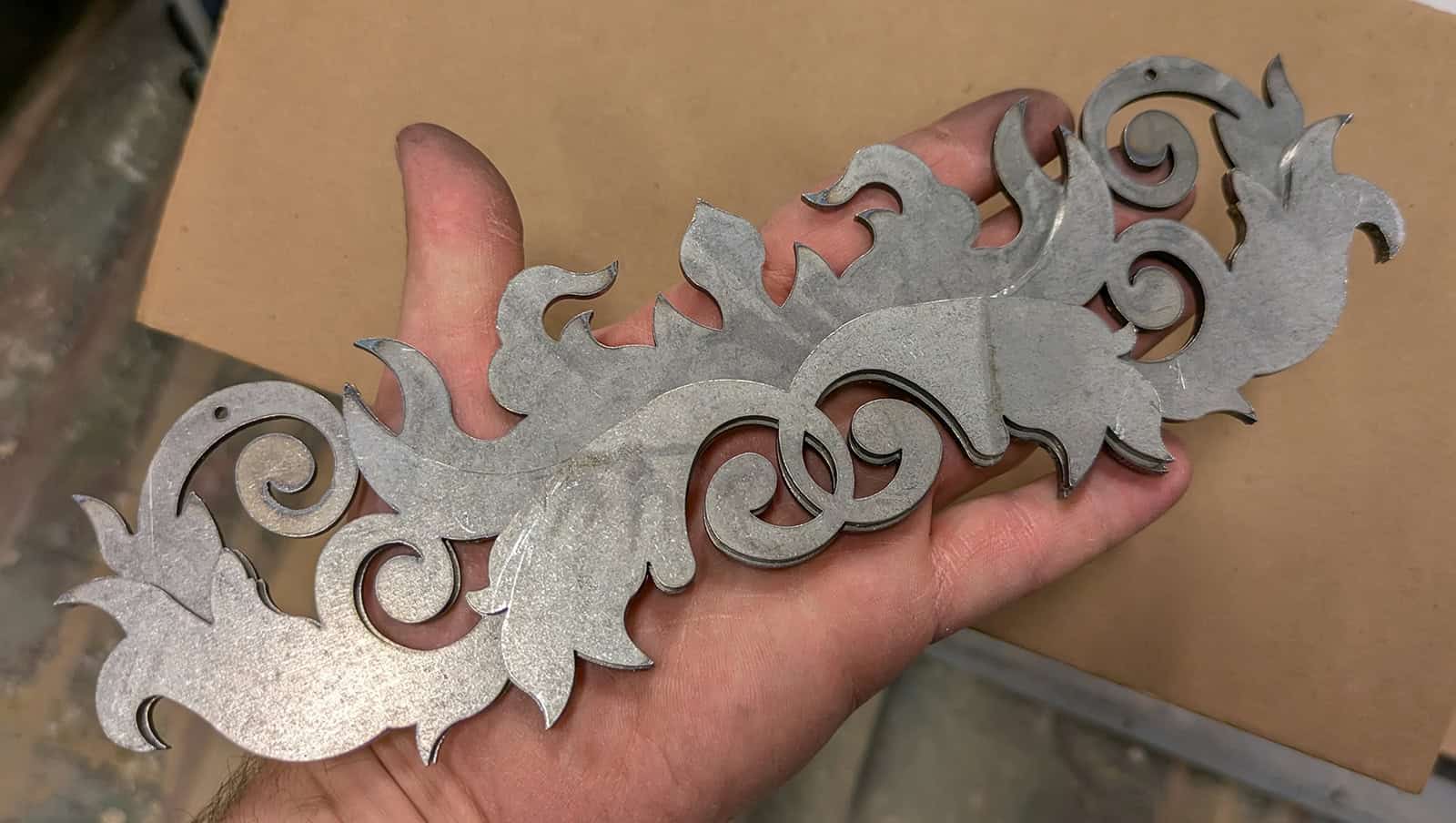

Filigree scenery pieces from Productions Unlimited

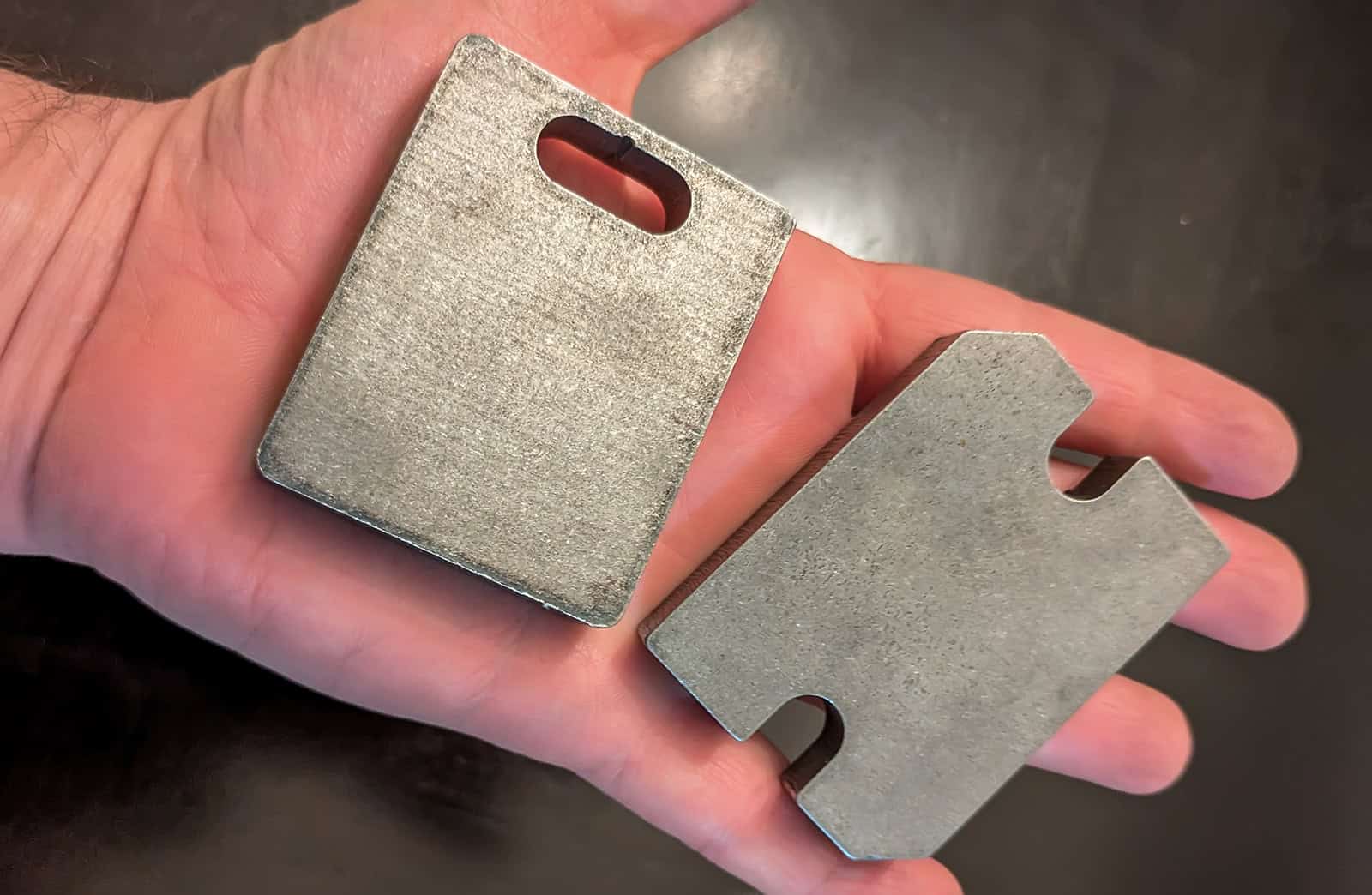

Counterweights from Productions Unlimited

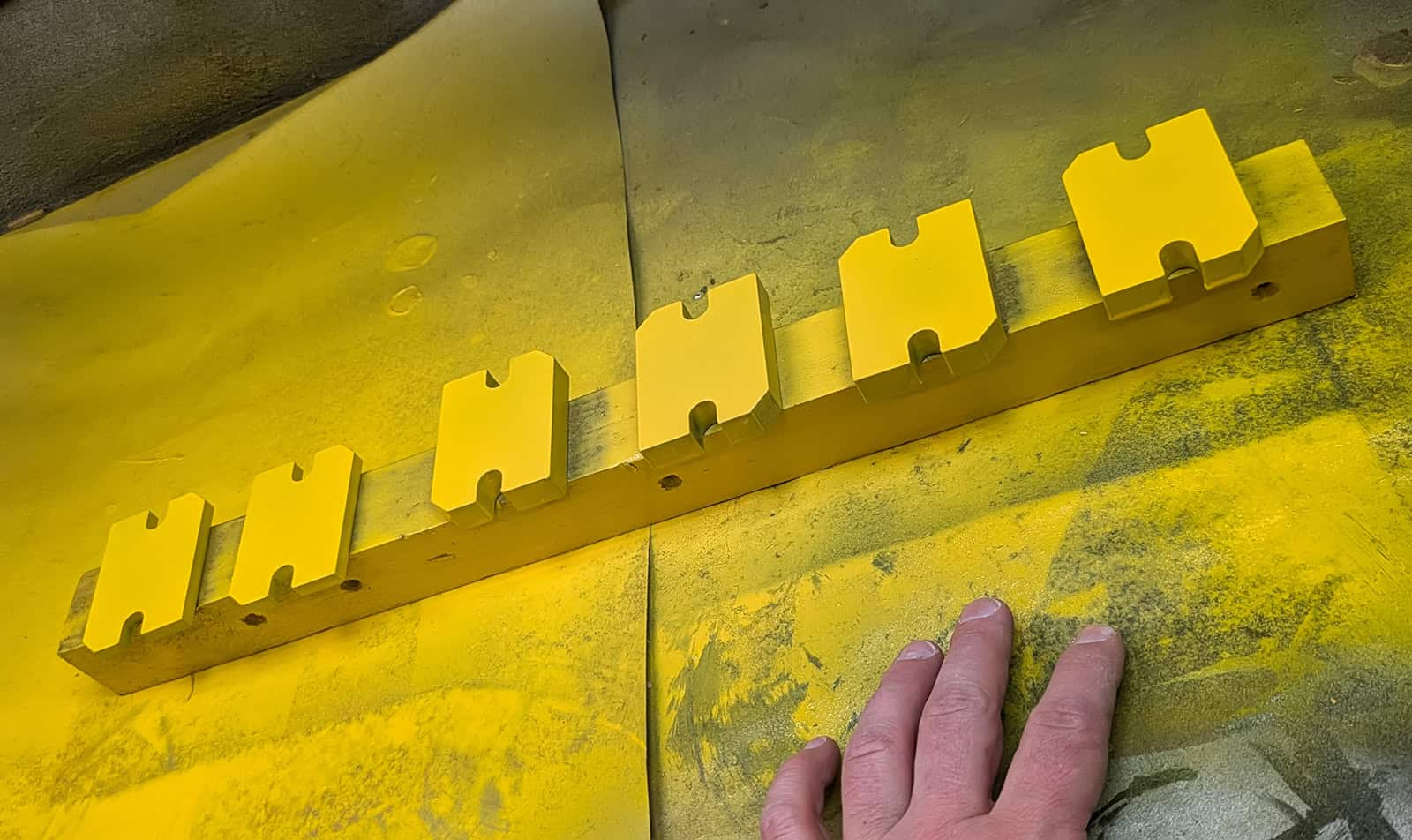

Painting the pipe weight

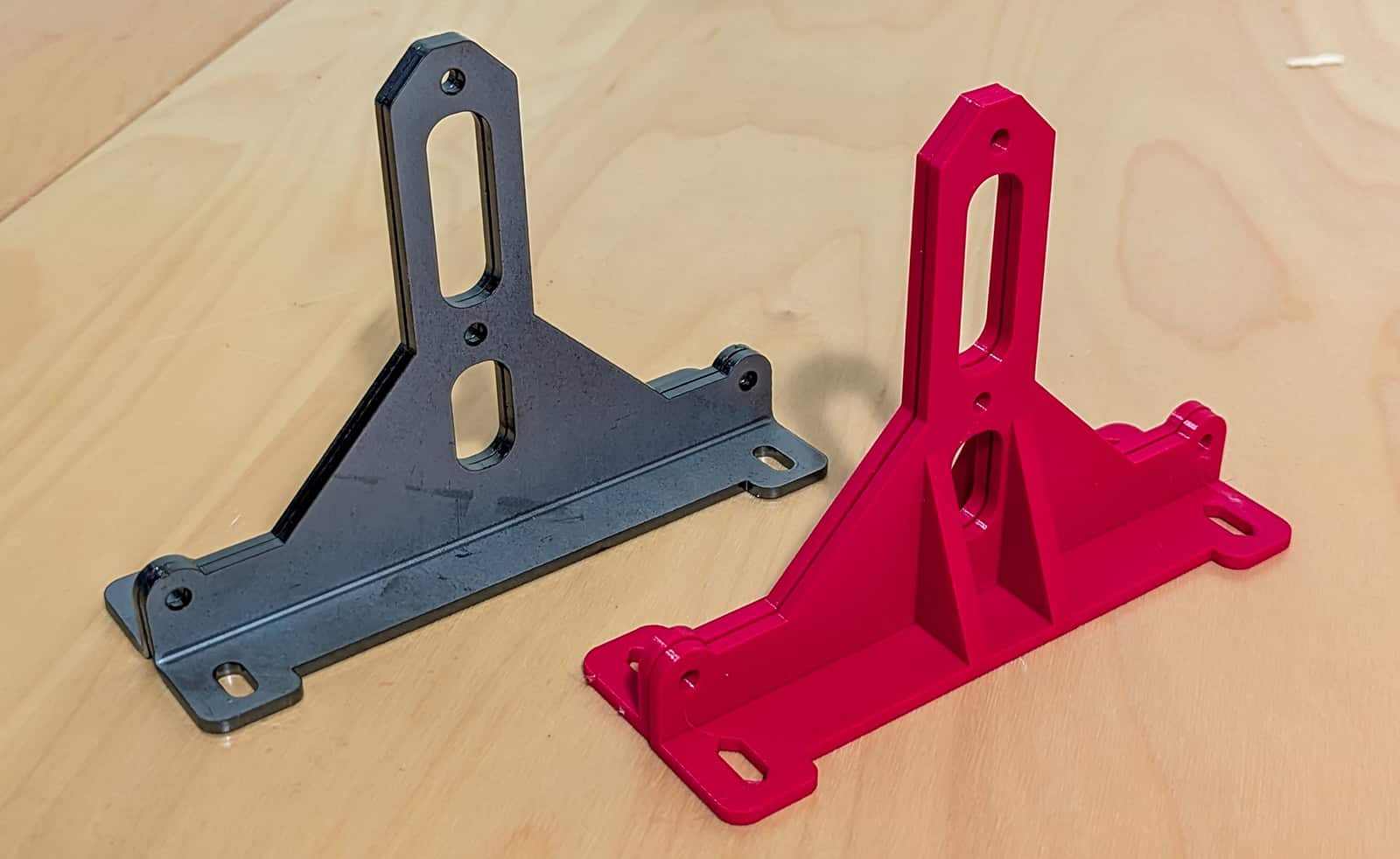

Side-by-side of metal and 3D-printed side plate versions

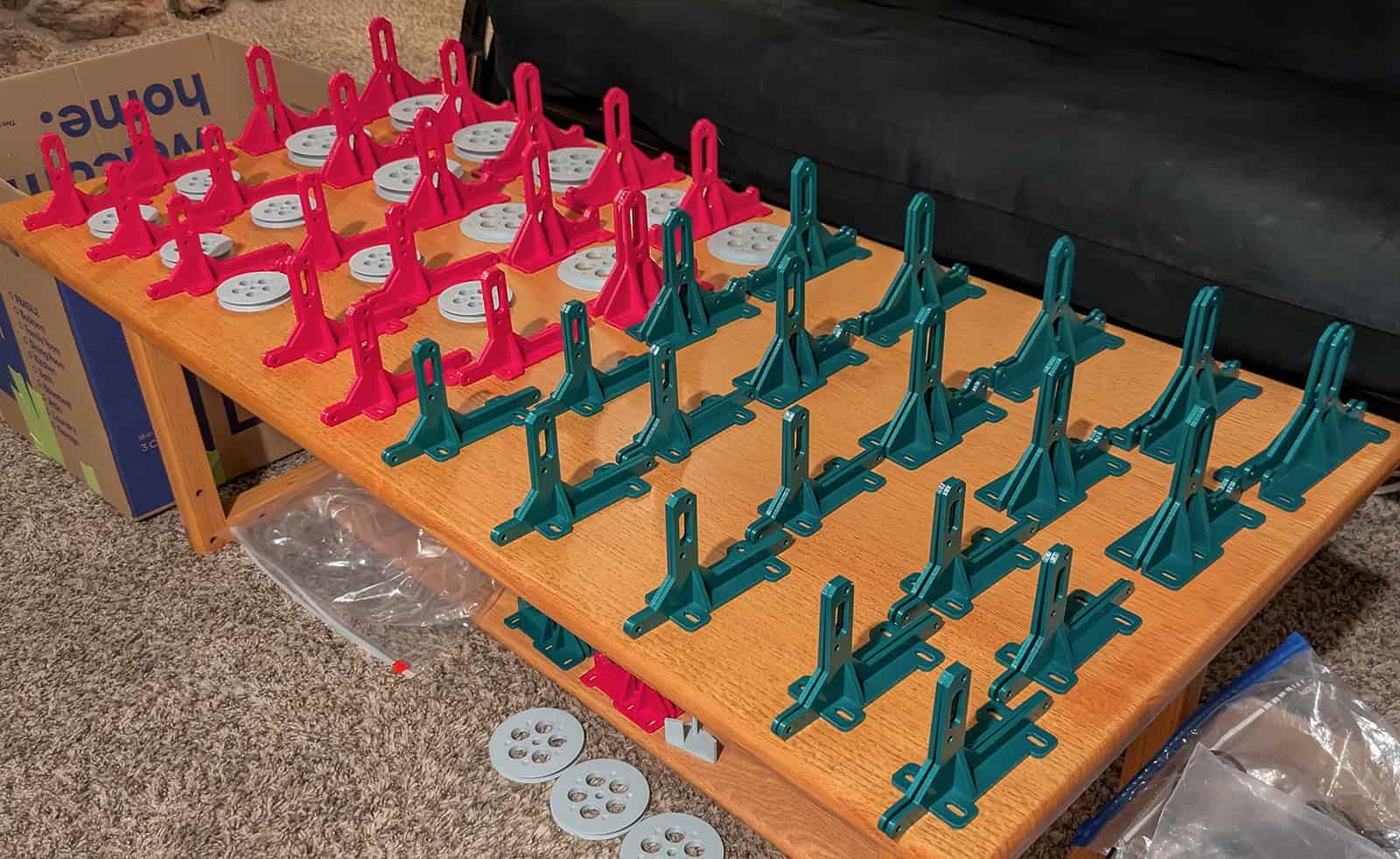

An army of 3D-printed side plates

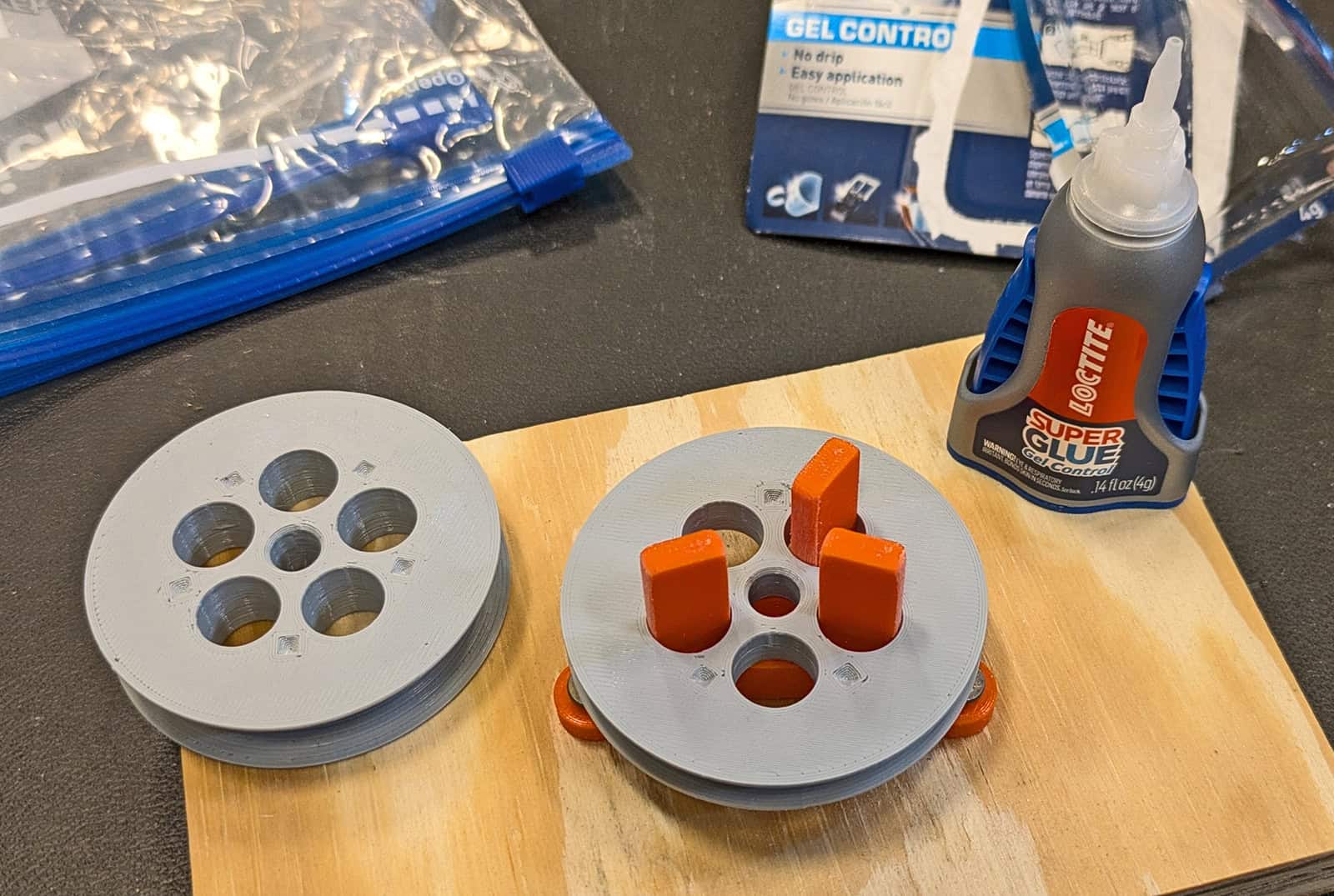

Assembling stacks of sheaves

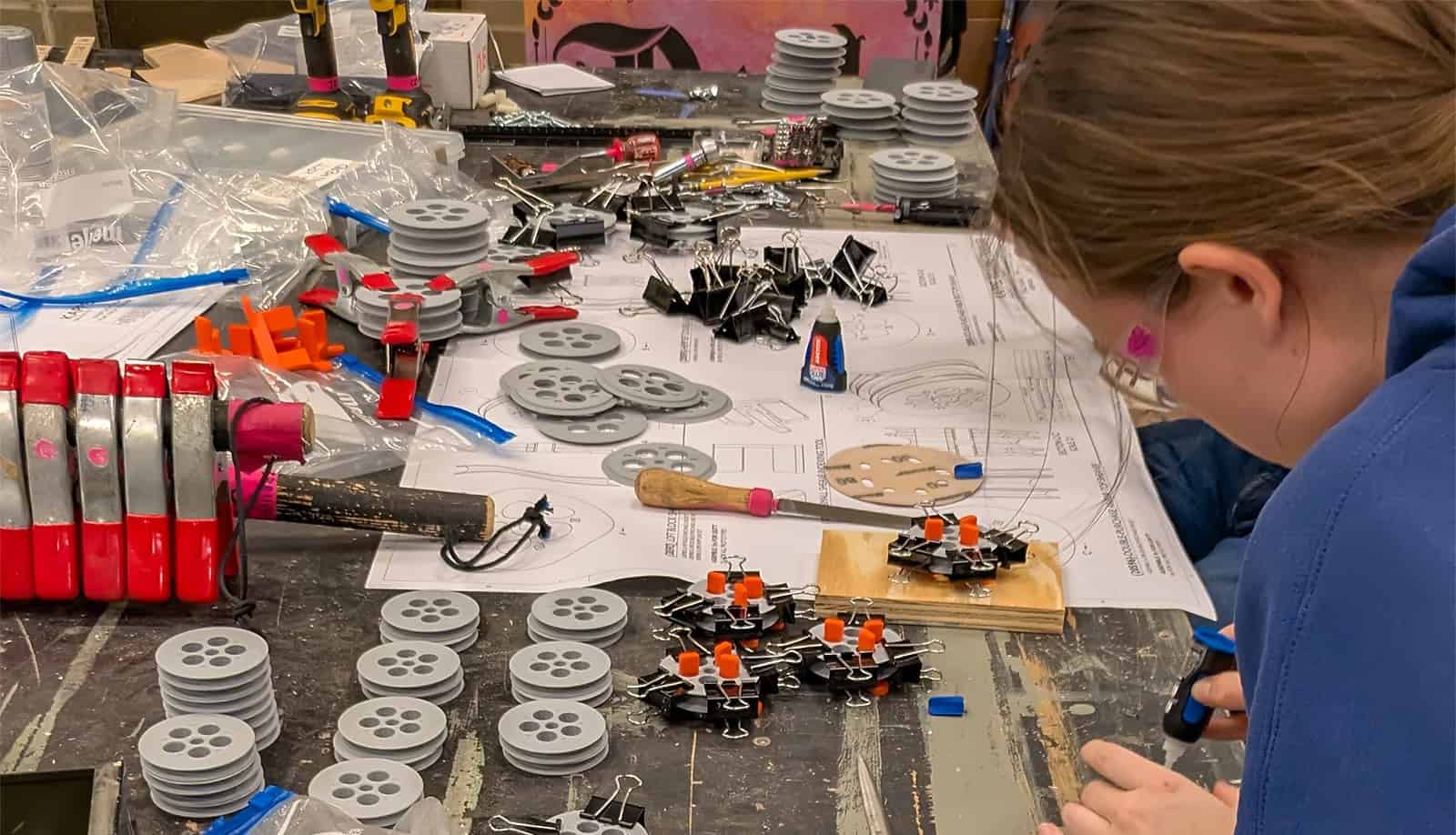

Sheave assembly party

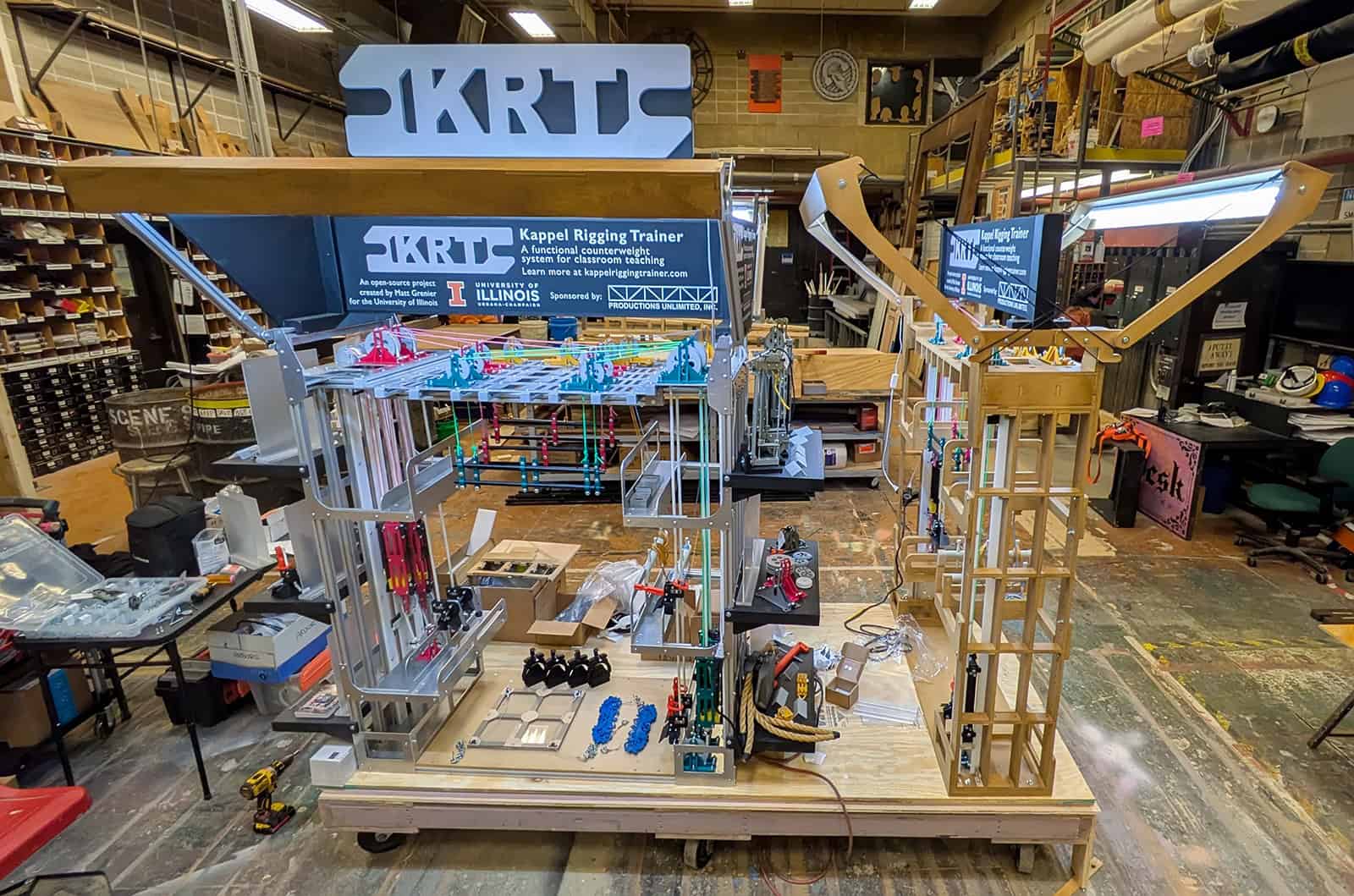

Mock-up of USITT display
